SRA-5 - Snowplow for trucks

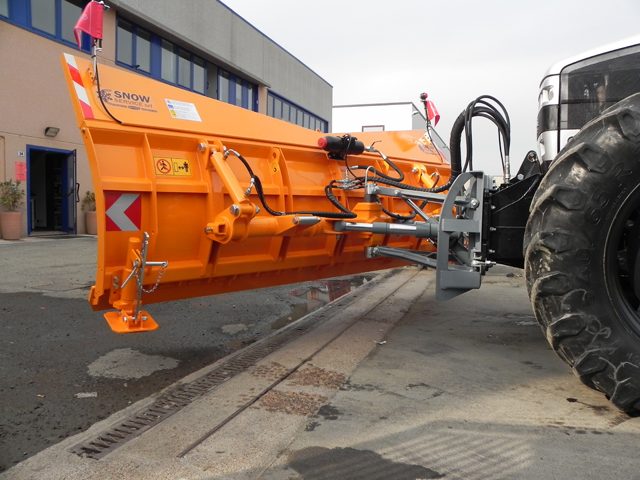

lame sgombraneve sra 5 lame sgombraneve snow service srl lame sgombraneve sra 5 xl lame sgombraneve snow service srl 01

Snowplow designed to fit trucks with GVW > 100 quintals and agricultural tractors with a horsepower category range larger than 90 hp and weight range> 45 quintals.

Plow completely made of high-strength steel and equipped with quick coupling DIN plate, in compliance with the DIN 76060/A regulations.

The front blade is made of N. 1 independent sector with cutting edges in wear resistant steel.

The SRA-5 snowplow for trucks is equipped with a shock-absorbing system controlled through a pair of hydraulic cylinders for the forward/backward movements of the blade, cylinders combined with a nitrogen accumulator.

Side mechanical stops in the positions of maximum inclination (in order to provide the hydraulic inclination cylinder protection). Central mechanical system that enables a transverse pitch angle of + 5°, with automatic horizontal locking of the equipment lifted from the ground while in motion. Painted with special anti-rust treatment and final paint RAL 2011 (orange). Overpressure valve in case of side impact, R2 pipes with fittings and unified quick couplings.

Mode of operation of the SRA-5 snowplow for trucks

Hydraulically driven, through hydraulic cylinders for the left/right tilt movements and lifting/lowering procedures and n° 2 pistons to manage and set the forward/backward movements of the blade, that set the correct inclination of the cutting edges.

Power supply

24 Volt electro-hydraulic power unit installed, on request (optional), on the snowplow. As an alternative option, a special hydraulic system installed on the vehicle (N. 3 double-acting distributors required, one with a floating position).

Handling settings

Control of the plow by means of the electric push-button panel, with cable of appropriate length, and of the electro-hydraulic unit. As an alternative option, commands already present on the vehicle if equipped with a special hydraulic system (ex. agricultural tractor).

Accessories standard version – SRA-5 snowplow for trucks

Warning poles, parking legs, Nitrogen accumulator, overpressure valve on the right/left tilt circuit and steel wear resistant cutting edge.

Optional features

DIN attachment plate with central ring (1200 x 600 mm) equipped with 4 mechanical bolts,

Led side-marker lights, pair of pivoting and adjustable in height slides, pair of additional lights with support on the DIN plate, electro-hydraulic control unit equipped with cable and push-button panel, steel curved lift bolted on the upper part of the snowplow, rubber splashguard,  bipolar electric cable with protection fuse to connect the control unit to the battery of the vehicle, possible processing techniques on the vehicle.

For further information on the SRA-5 snowplow for trucks and for a custom-made offer do not hesitate to directly contact us or fill the "Contact" form on this page!



CodeModelstandard weight (kg)weight with control unit (kg)width (mt)standard height (mt)height with rise (mt)working width (mt)
5030600

SRA 5 306 870  930  3,06 1,03 1,18 2,51
5030730

SRA 5 326 900  960  3,26 1,03 1,18 2,68
5030740

SRA 5 356 940  1000  3,56 1,03 1,18 2,92
5030750

SRA 5 380 970  1030  3,80 1,03 1,18 3,12
