CS68 6P SNOWPLOW - Plows for backhoe loaders, wheel loaders

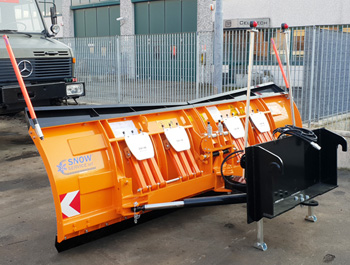

lame sgombraneve cS68 6p lame sgombraneve snow service srl 01

Snowplow designed to fit all kind of operating machines in general: (backhoe loaders, wheel loaders, telehandlers and similar) with a horsepower category range > 80 hp.

Plow completely made of high-strength steel and equipped with a customized hitch system to the operating machine (the same hitch system as for the original bucket).

The front blade is made of N. 2 independent sectors with cutting edges in wear resistant steel or, on request, in Neoprene.

The CS68 6P snowplow for wheel loaders and backhoe loaders is equipped with and elastomer shock-absorbing system, tie effect of the elastomers, obstacle overcoming system with complete forward overturning of every single blade sector and immediate return to the vertical working position once the obstacle is overcome.

Retaining mechanical system (retaining mechanical hooks) to maintain the blade in vertical position during normal snow clearing operations. Central mechanical system that enables a transverse pitch angle of + 5°.

Painted with special anti-rust treatment and final paint RAL 2011 (orange). Overpressure valve in case of side impact, R2 pipes with fittings and unified quick couplings.

Mode of operation of the CS68 6P snowplow for wheel loaders and backhoe loaders


Hydraulically driven, through hydraulic cylinders for the left/right tilt movements.

Power supply

Customized hydraulic system already installed on the vehicle (a double-acting distributor required). Handling controls: controls (levers or joystick) already installed on the vehicle.

Accessories standard version - CS68 6P snowplow for wheel loaders and backhoe loaders

Warning flags, parking legs, overpressure valve on the right/left tilt circuit and steel wear resistant cutting edge.

Optional features

Led side-marker lights, stainless steel blade, 12 V radio power unit,  bipolar electric cable with protection fuse to connect the control unit to the battery of the vehicle, Neoprene cutting edge, complete hitch linkage system for pick-ups and 4 x 4 small trucks, possible processing techniques on the vehicle.

Operational features of the CS68 6P snowplow for wheel loaders and backhoe loaders

Snowplow particularly suited for plowing operations in urban road networks, in presence of obstacles and road infrastructures. Possibility to replace the front shock absorbing system with the N. 4 sockets provided with the equipment.  If the system is locked off the snowplow can be used as levelling bulldozer.


For further information on the CS68 6P snowplow for wheel loaders and backhoe loaders and for a custom-made offer do not hesitate to directly contact us or fill in the attached form!



CodeModelWeight (kg)Width (mt)Height (mt): standard/with riseWorking width (mt)
5030251
5411010
5410790
CS68/6 P 260 720  2,60 1,03 1,14 2,13
5030260
5411010
5410790
CS68/6 P 280 770  2,83 1,03 1,14 2,32
5030270
5411010
5410800
CS68/6 P 306 810 3,06 1,03 1,14 2,51
5030280
5411010
5410790
CS68/6 P 326 850 3,26 1,03 1,14 2,68
5030290
5411010
5410790
CS68/6 P 356 900 3,56 1,03 1,14 2,92

N.B. The weight can vary by +7/8% depending on the specific quick or direct connection.
