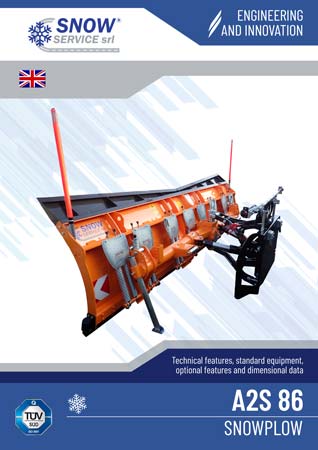

SNOW PLOUGH A2S/86 - Snow plough/plow for truck
Snow plow truck with GVW> 100 q.li and tractors greater than 90 hp power with weight> 45 quintals.
Equipment Snow built entirely of steel with high mechanical characteristics and counter-plate quick fit conforms to the Statement of DIN 76060 / A. Front shear in two independent sectors with scraping knife wear steel or, on request, vulkollan. shockproof system built by special elastomers, in traction agents, with total reversal towards the front of each sector and recall of the same in the vertical working position after passing the obstacle. mechanical system of harpooning (hammers restraint) which holds the shear in the vertical position during normal conditions of snow clearing. mechanical limit switch stops into the maximum tilt position (to protect the hydraulic cylinder for the inclination). central mechanical system, which allows a transversal angle of pitch of + 5 °, with the horizontal automatic locking of the blade in raised transfer.
Oven painted with a special anti-rust treatment and final enamel RAL 2011 (orange). Pressure relief valve for shock side impact, pipe fittings and unified R2 with quick couplings.
Hydraulic, with hydraulic cylinders for tilting left / right and up / down.
Sources of energy
Electro hydraulic power to 24 Volt can be installed on request (optional), the implement Snow. Alternatively, special hydraulic plant realized on the thrust means (2 distributors need to double effect of one is equipped with floating position).
Commands for handling
Electric push-button, with recommended length cable, combined with the electro-hydraulic control unit. Alternatively, commands already present on the vehicle if fitted with a suitable hydraulic system (es. Agricultural tractor).
Flags, standing parking, pressure relief valve on the tilt circuit right / left and knife scraping wear steel.
Counter-coupling with central slot (1200 x 600 mm) with 4 mechanical bolts, knife scraping in vulkolan, marker lights, pair of height-adjustable slides and pivoting pair of pivoting wheels and height adjustable, pair of additional lights with support of counter-plate, hydraulic power pack with cable and push button, shaped rising steel bolted or welded to the upper edge of the blade, rubber mud flaps, adjustable PVC sheet splash guard, twisted-pair cable with a fuse unit for connection to the vehicle battery , various machining operations on a medium.
N.B.: the blade weight is reduced of 10% approx if it is equipped with Vulkollan cutting edges.
